Desconectores hembra de nailon
1. MÁXIMA CAPACIDAD ELÉCTRICA: 300 VOLTIOS
2. TEMPERATURA MÁXIMA: 105 ℃
3. MATERIAL DEL TERMINAL: LATÓN
4. RECUBRIMIENTO: ELECTROESTAÑADO
5. MATERIAL DE AISLAMIENTO: NYLON DE FÁCIL ENTRADA
Seleccionar todo
Reiniciar

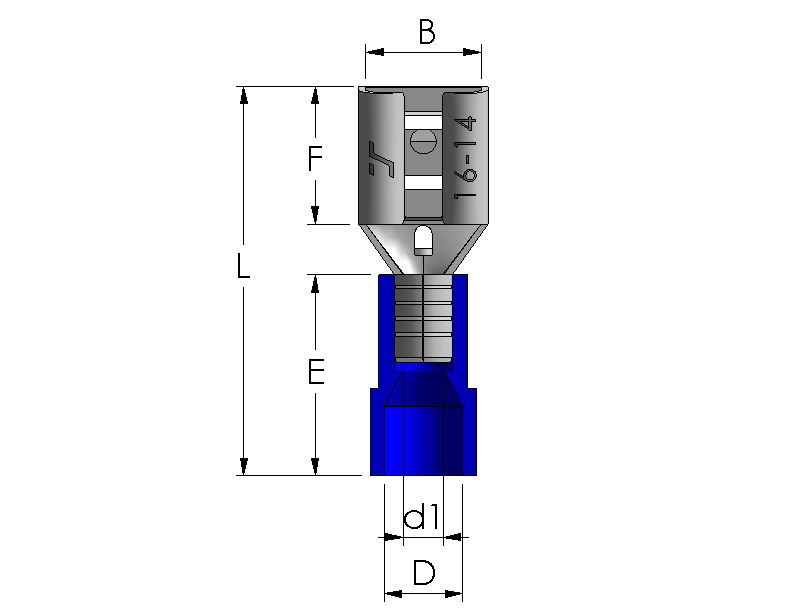

Añadir a cotización| RANGO DE CABLES AWG / mm² | NÚMERO DE ARTÍCULO | UL | PESTAÑA NEMA | B (mm) | F (mm) | Largo (mm) | E (mm) | Diámetro (mm) | d1 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 22~16 0.5~1.5 | ★ | .020*.110 (0.5*2.8) | 3.20 | 6.40 | 19.50 | 11.0 | 4.10 | 1.70 | 0.30 | |
| 22~16 0.5~1.5 | ★ | .032*.110 (0.8*2.8) | 3.20 | 6.40 | 19.50 | 11.0 | 4.10 | 1.70 | 0.30 | |
| 22~16 0.5~1.5 | ★ | .020*.187 (0.5*4.8) | 5.0 | 6.50 | 20.0 | 11.0 | 4.10 | 1.70 | 0.35 | |
| 22~16 0.5~1.5 | ★ | .032*.187 (0.8*4.8) | 5.0 | 6.50 | 20.0 | 11.0 | 4.10 | 1.70 | 0.35 | |
| 22~16 0.5~1.5 | ★ | .032*.250 (0.8*6.4) | 6.60 | 7.90 | 22.0 | 11.0 | 4.10 | 1.70 | 0.40 | |
| 22~16 0.5~1.5 | .032*.312 (0.8*8.0) | 8.40 | 10.0 | 25.0 | 11.0 | 4.10 | 1.70 | 0.40 | ||
| 16~14 1.5~2.5 | ★ | .020*.110 (0.5*2.8) | 3.20 | 6.40 | 19.50 | 11.0 | 4.80 | 2.30 | 0.30 | |
| 16~14 1.5~2.5 | ★ | .032*.110 (0.8*2.8) | 3.20 | 6.40 | 19.50 | 11.0 | 4.80 | 2.30 | 0.30 | |
| 16~14 1.5~2.5 | ★ | .020*.187 (0.5*4.8) | 5.0 | 6.50 | 20.0 | 11.0 | 4.80 | 2.30 | 0.35 | |
| 16~14 1.5~2.5 | ★ | .032*.187 (0.8*4.8) | 5.0 | 6.50 | 20.0 | 11.0 | 4.80 | 2.30 | 0.35 | |
| 16~14 1.5~2.5 | ★ | .032*.250 (0.8*6.4) | 6.60 | 7.90 | 22.0 | 11.0 | 4.80 | 2.30 | 0.40 | |
| 16~14 1.5~2.5 | .032*.312 (0.8*8.0) | 8.40 | 10.0 | 25.0 | 11.0 | 4.80 | 2.30 | 0.40 | ||
| 12~10 4~6 | ★ | .032*.250 (0.8*6.4) | 6.60 | 7.90 | 24.0 | 13.0 | 6.50 | 3.40 | 0.40 | |
| 12~10 4~6 | .047*.375 (1.2*9.5) | 9.90 | 12.50 | 29.0 | 13.0 | 6.50 | 3.40 | 0.50 |
