- TERMINALES DE ANILLO DE NYLON DE DOBLE ENGARCE (ENTRADA FÁCIL)

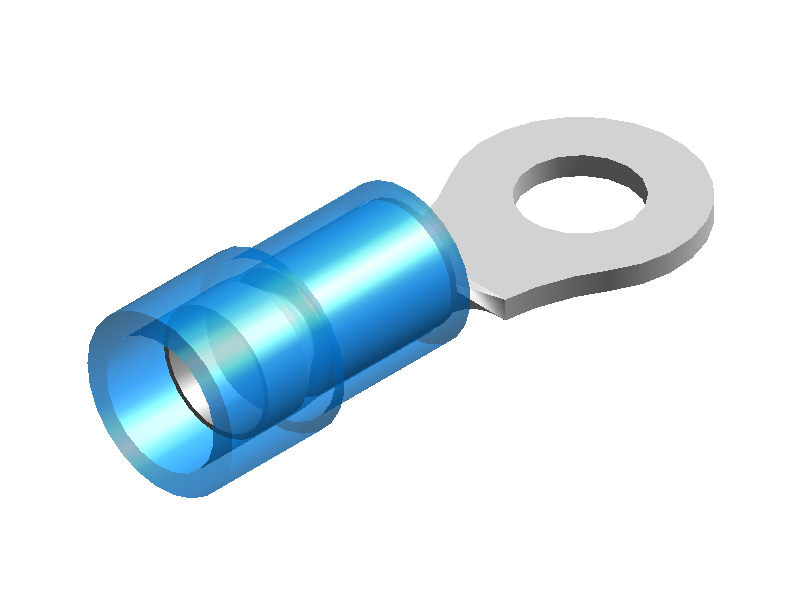

Terminales de anillo de nailon de doble crimpado (fácil acceso)
~~~ENTRADA FÁCIL~~~
1. MÁXIMA CAPACIDAD ELÉCTRICA: 600 VOLTIOS
2. TEMPERATURA MÁXIMA: 105 ℃
3. MATERIAL DEL TERMINAL: COBRE
4. REVESTIMIENTO: ELECTROESTAÑADO
5. MANGUITO DE REFUERZO: MANGUITO TIPO C
6. MATERIAL DE AISLAMIENTO: NYLON
1. MÁXIMA CAPACIDAD ELÉCTRICA: 600 VOLTIOS
2. TEMPERATURA MÁXIMA: 105 ℃
3. MATERIAL DEL TERMINAL: COBRE
4. REVESTIMIENTO: ELECTROESTAÑADO
5. MANGUITO DE REFUERZO: MANGUITO TIPO C
6. MATERIAL DE AISLAMIENTO: NYLON
Seleccionar todo
Reiniciar
Añadir a cotización| RANGO DE CABLES AWG / mm² | NÚMERO DE ARTÍCULO | UL | TAMAÑO DEL PERNO d2 | B (mm) | Largo (mm) | F (mm) | E (mm) | Diámetro (mm) | d1 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 22~16 0.5~1.5 | ★ | #2 (2.2) | 6.60 | 20.60 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #4 (3.2) | 5.50 | 17.70 | 4.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 5.50 | 17.70 | 4.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 6.60 | 20.60 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 8.0 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 6.60 | 20.60 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 8.0 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #10 (5.3) | 8.0 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 1/4 (6.5) | 11.60 | 27.80 | 11.10 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 5/16 (8.4) | 11.60 | 27.80 | 11.10 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 3/8 (10.5) | 13.60 | 31.70 | 13.90 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 1/2 (13.0) | 19.20 | 36.60 | 16.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 16~14 1.5~2.5 | ★ | #2 (2.2) | 6.40 | 18.50 | 4.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #4 (3.2) | 6.40 | 18.50 | 4.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 6.40 | 18.50 | 4.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 6.60 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 8.50 | 23.0 | 7.80 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 6.60 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 8.50 | 23.0 | 7.80 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 8.50 | 23.0 | 7.80 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 9.50 | 23.0 | 7.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | 1/4 (6.5) | 9.50 | 23.0 | 7.30 | 11.0 | 4.50 | 2.30 | 0.80 | ||
| 16~14 1.5~2.5 | ★ | 1/4 (6.5) | 12.0 | 28.0 | 11.0 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 5/16 (8.4) | 12.0 | 28.0 | 11.0 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 3/8 (10.5) | 13.60 | 31.70 | 13.90 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 1/2 (13.0) | 19.20 | 36.60 | 16.0 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 12~10 4~6 | ★ | #4 (3.2) | 7.20 | 22.50 | 5.90 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #6 (3.7) | 7.20 | 22.50 | 5.90 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #6 (3.7) | 9.50 | 26.0 | 8.30 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #8 (4.3) | 7.20 | 22.50 | 5.90 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #8 (4.3) | 9.50 | 26.0 | 8.30 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #10 (5.3) | 9.50 | 26.0 | 8.30 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 1/4 (6.5) | 12.0 | 29.50 | 10.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 5/16 (8.4) | 15.0 | 34.20 | 13.70 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 3/8 (10.5) | 15.0 | 34.20 | 13.70 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 1/2 (13.0) | 19.20 | 38.60 | 16.0 | 13.0 | 6.50 | 3.40 | 1.0 |
