Terminales de horquilla con brida de nailon
1. MÁXIMA CAPACIDAD ELÉCTRICA: 600 VOLTIOS
2. TEMPERATURA MÁXIMA: 105 ℃
3. MATERIAL DEL TERMINAL: COBRE
4. RECUBRIMIENTO: ELECTROESTAÑADO
5. MATERIAL DE AISLAMIENTO: NYLON DE FÁCIL ENTRADA
2. TEMPERATURA MÁXIMA: 105 ℃
3. MATERIAL DEL TERMINAL: COBRE
4. RECUBRIMIENTO: ELECTROESTAÑADO
5. MATERIAL DE AISLAMIENTO: NYLON DE FÁCIL ENTRADA
Seleccionar todo
Reiniciar

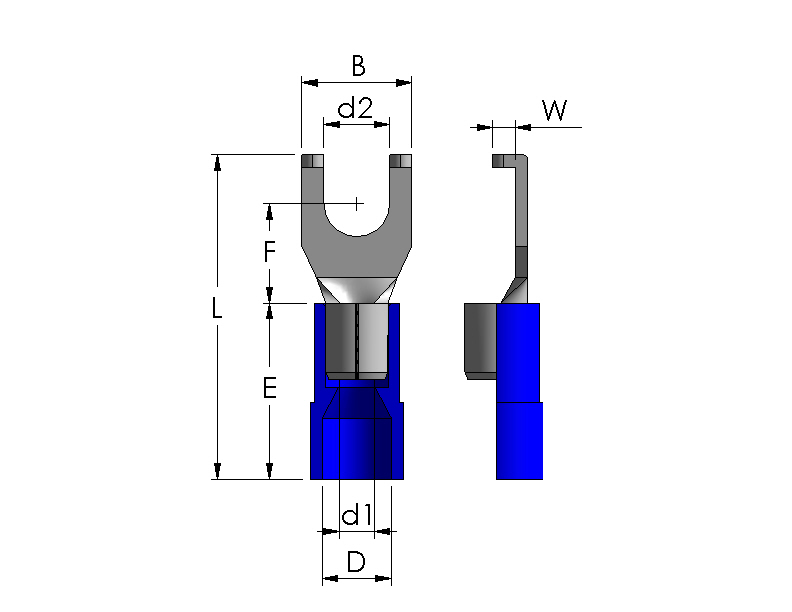

Añadir a cotización| RANGO DE CABLES AWG / mm² | NÚMERO DE ARTÍCULO | UL | TAMAÑO DEL PERNO d2 | B (mm) | L (mm) | F (mm) | E (mm) | D (mm) | d1 (mm) | W (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22~16 0.5~1.5 | ★ | #4 (3.2) | 5.0 | 20.50 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #4 (3.2) | 5.80 | 20.50 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 5.80 | 20.50 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 6.40 | 20.0 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 7.20 | 20.50 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 6.40 | 20.0 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 7.20 | 20.50 | 6.30 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 8.0 | 20.50 | 7.0 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #10 (5.3) | 8.0 | 20.50 | 7.0 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #10 (5.3) | 9.50 | 20.50 | 7.0 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 1/4 (6.5) | 9.50 | 20.50 | 7.0 | 11.0 | 4.10 | 1.70 | 1.50 | 0.75 | |
| 16~14 1.5~2.5 | ★ | #4 (3.2) | 5.0 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #4 (3.2) | 5.80 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 5.80 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 6.40 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 7.20 | 20.70 | 6.50 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 6.40 | 20.50 | 6.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 7.20 | 20.70 | 6.50 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 8.50 | 21.50 | 7.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 8.50 | 21.50 | 7.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 9.50 | 21.50 | 7.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 1/4 (6.5) | 9.50 | 21.50 | 7.30 | 11.0 | 4.50 | 2.30 | 1.50 | 0.80 | |
| 12~10 4~6 | ★ | #6 (3.7) | 7.20 | 24.50 | 7.50 | 13.0 | 6.50 | 3.40 | 1.50 | 1.0 | |
| 12~10 4~6 | ★ | #6 (3.7) | 8.50 | 24.50 | 7.50 | 13.0 | 6.50 | 3.40 | 1.50 | 1.0 | |
| 12~10 4~6 | ★ | #8 (4.3) | 8.50 | 24.50 | 7.50 | 13.0 | 6.50 | 3.40 | 1.50 | 1.0 | |
| 12~10 4~6 | ★ | #8 (4.3) | 9.50 | 24.50 | 7.50 | 13.0 | 6.50 | 3.40 | 1.50 | 1.0 | |
| 12~10 4~6 | ★ | #10 (5.3) | 9.50 | 24.50 | 7.50 | 13.0 | 6.50 | 3.40 | 1.50 | 1.0 | |
| 12~10 4~6 | ★ | 1/4 (6.5) | 9.50 | 24.50 | 7.50 | 13.0 | 6.50 | 3.40 | 1.50 | 1.0 |
