Conectores a tope tipo ventana de nailon de doble crimpado
~~~EASY ENTRY~~~
1. MAXIMUM ELECTRICAL RATING : 600 VOLTS
2. MAXIMUM TEMPERATURE : 105 ℃
3. TERMINAL MATERIAL : COPPER STRIP
4. PLATING ELECTRO TIN PLATED
5. REINFORCEMENT SLEEVE : C TYPE SLEEVE
5. INSULATION MATERIAL : NYLON
1. MAXIMUM ELECTRICAL RATING : 600 VOLTS
2. MAXIMUM TEMPERATURE : 105 ℃
3. TERMINAL MATERIAL : COPPER STRIP
4. PLATING ELECTRO TIN PLATED
5. REINFORCEMENT SLEEVE : C TYPE SLEEVE
5. INSULATION MATERIAL : NYLON
Seleccionar todo
Reiniciar

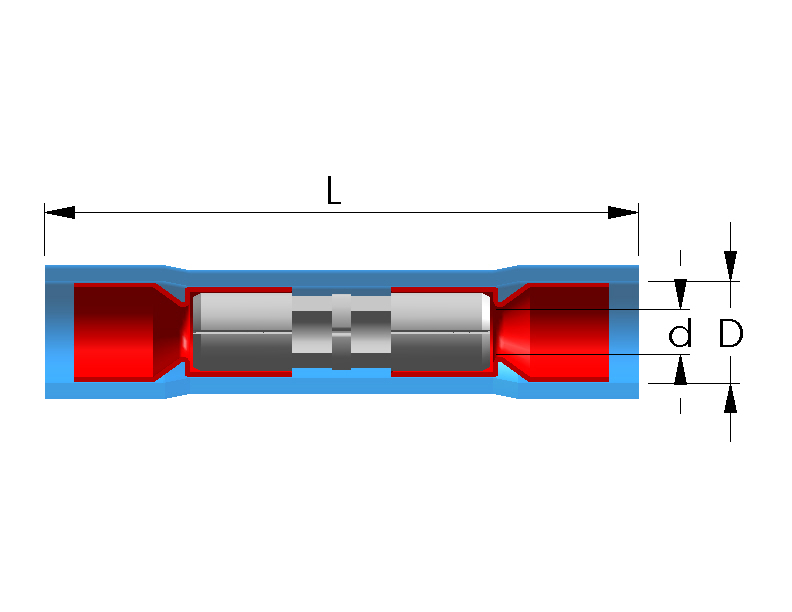

Añadir a cotización| RANGO DE CABLES AWG / mm² | NÚMERO DE ARTÍCULO | UL | L (mm) | d (mm) | D (mm) |
|---|---|---|---|---|---|
| 22~16 0.5~1.5 | 30.0 | 1.70 | 4.10 | ||
| 16~14 1.5~2.5 | 30.0 | 2.30 | 4.80 | ||
| 12~10 4~6 | 35.0 | 3.40 | 6.50 |
