Terminales de pala de PVC (Din 46237)
1. MÁXIMA CAPACIDAD ELÉCTRICA: 600 VOLTIOS
2. TEMPERATURA MÁXIMA: 105 ℃
3. MATERIAL DEL TERMINAL: COBRE
4. COSTURA SOLDADA
5. RECUBRIMIENTO: ELECTROESTAÑADO
6. MATERIAL DE AISLAMIENTO: VINILO (PVC)
Seleccionar todo
Reiniciar

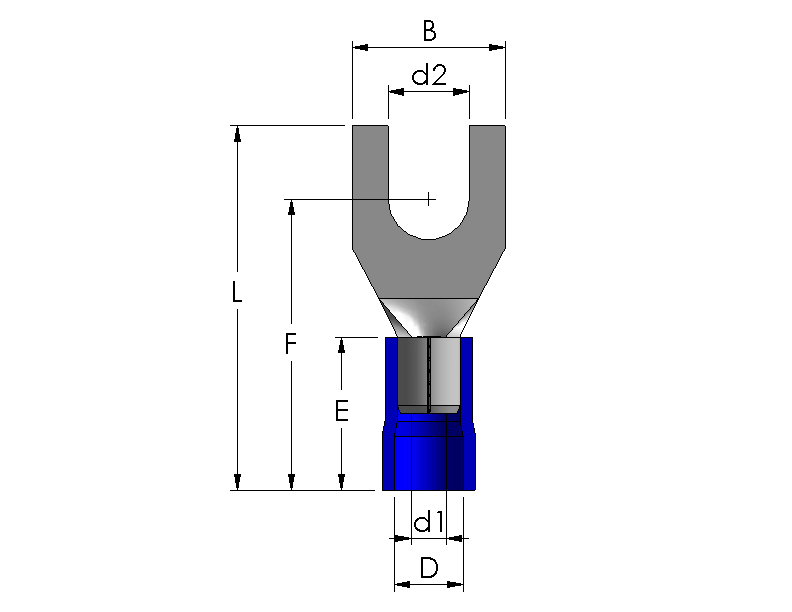

Añadir a cotización| RANGO DE CABLES AWG / mm² | NÚMERO DE ARTÍCULO | UL | TAMAÑO DEL PERNO d2 | B (mm) | Largo (mm) | F (mm) | E (mm) | Diámetro (mm) | d1 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 22~16 0.5~1.5 | ★ | #3 (2.7) | 6.0 | 18.80 | 16.0 | 10.0 | 4.10 | 1.60 | 0.80 | |
| 22~16 0.5~1.5 | ★ | #4 (3.2) | 6.0 | 18.80 | 16.0 | 10.0 | 4.10 | 1.60 | 0.80 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 6.0 | 18.80 | 16.0 | 10.0 | 4.10 | 1.60 | 0.80 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 8.0 | 20.80 | 17.0 | 10.0 | 4.10 | 1.60 | 0.80 | |
| 22~16 0.5~1.5 | ★ | #10 (5.3) | 10.0 | 22.80 | 18.0 | 10.0 | 4.10 | 1.60 | 0.80 | |
| 22~16 0.5~1.5 | ★ | 1/4 (6.5) | 11.0 | 25.30 | 20.0 | 10.0 | 4.10 | 1.60 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #4 (3.2) | 6.0 | 18.80 | 16.0 | 10.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 6.0 | 18.80 | 16.0 | 10.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 8.0 | 20.80 | 17.0 | 10.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 10.0 | 23.80 | 19.0 | 10.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 1/4 (6.5) | 11.0 | 26.30 | 21.0 | 10.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 5/16 (8.4) | 14.0 | 28.80 | 22.0 | 10.0 | 4.50 | 2.30 | 0.80 | |
| 12~10 4~6 | ★ | #8 (4.3) | 8.0 | 24.50 | 20.50 | 13.0 | 6.50 | 3.60 | 1.0 | |
| 12~10 4~6 | ★ | #10 (5.3) | 10.0 | 26.50 | 21.50 | 13.0 | 6.50 | 3.60 | 1.0 | |
| 12~10 4~6 | ★ | 1/4 (6.5) | 11.0 | 28.0 | 22.50 | 13.0 | 6.50 | 3.60 | 1.0 | |
| 12~10 4~6 | ★ | 5/16 (8.4) | 14.0 | 32.50 | 25.50 | 13.0 | 6.50 | 3.60 | 1.0 |
