Terminales de cable sin aislamiento (Din 46228/1)
1. MATERIAL DEL TERMINAL: TUBO DE COBRE
2. RECUBRIMIENTO: ESTAÑADO ELECTRO
2. RECUBRIMIENTO: ESTAÑADO ELECTRO
Seleccionar todo
Reiniciar

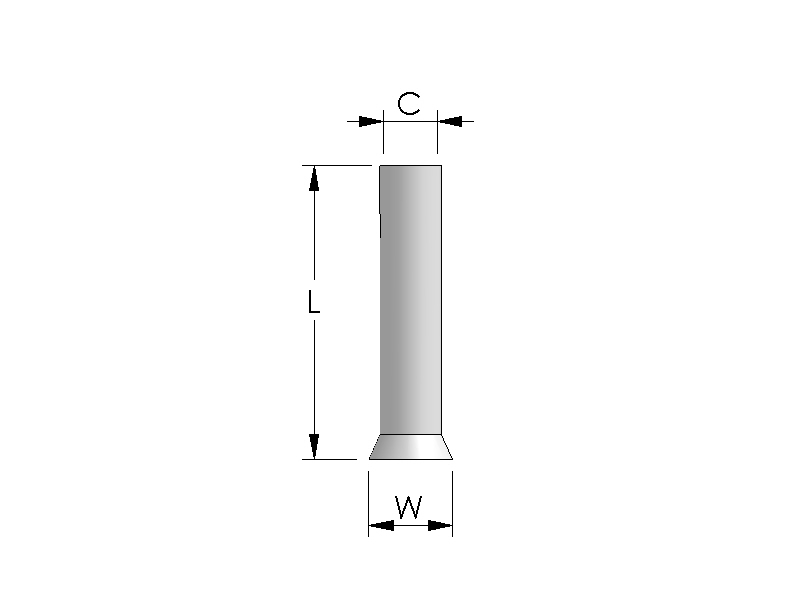

Añadir a cotización| RANGO DE CABLES AWG/mm² | NÚMERO DE ARTÍCULO | UL | L (mm) | C (mm) | W (mm) | PIEZAS DE EMBALAJE |
|---|---|---|---|---|---|---|
| 26 0.14 | 5.0 | 0.80 | 1.70 | 1000 PCS | ||
| 26 0.14 | 7.0 | 0.80 | 1.70 | 1000 PCS | ||
| 24 0.25 | ★ | 5.0 | 0.80 | 1.70 | 1000 PCS | |
| 24 0.25 | ★ | 7.0 | 0.80 | 1.70 | 1000 PCS | |
| 22 0.34 | ★ | 5.0 | 0.90 | 1.80 | 1000 PCS | |
| 22 0.34 | ★ | 7.0 | 0.90 | 1.80 | 1000 PCS | |
| 20 0.5 | ★ | 6.0 | 1.0 | 2.10 | 1000 PCS | |
| 20 0.5 | ★ | 8.0 | 1.0 | 2.10 | 1000 PCS | |
| 20 0.5 | ★ | 10.0 | 1.0 | 2.10 | 1000 PCS | |
| 20 0.5 | ★ | 12.0 | 1.0 | 2.10 | 1000 PCS | |
| 18 0.75 | ★ | 6.0 | 1.20 | 2.30 | 1000 PCS | |
| 18 0.75 | ★ | 8.0 | 1.20 | 2.30 | 1000 PCS | |
| 18 0.75 | ★ | 10.0 | 1.20 | 2.30 | 1000 PCS | |
| 18 0.75 | ★ | 12.0 | 1.20 | 2.30 | 1000 PCS | |
| 18 1.0 | ★ | 6.0 | 1.40 | 2.50 | 1000 PCS | |
| 18 1.0 | ★ | 8.0 | 1.40 | 2.50 | 1000 PCS | |
| 18 1.0 | ★ | 10.0 | 1.40 | 2.50 | 1000 PCS | |
| 18 1.0 | ★ | 12.0 | 1.40 | 2.50 | 1000 PCS | |
| 16 1.5 | ★ | 7.0 | 1.70 | 2.80 | 1000 PCS | |
| 16 1.5 | ★ | 8.0 | 1.70 | 2.80 | 1000 PCS | |
| 16 1.5 | ★ | 10.0 | 1.70 | 2.80 | 1000 PCS | |
| 16 1.5 | ★ | 12.0 | 1.70 | 2.80 | 1000 PCS | |
| 16 1.5 | ★ | 18.0 | 1.70 | 2.80 | 1000 PCS | |
| 14 2.5 | ★ | 7.0 | 2.20 | 3.40 | 1000 PCS | |
| 14 2.5 | ★ | 8.0 | 2.20 | 3.40 | 1000 PCS | |
| 14 2.5 | ★ | 10.0 | 2.20 | 3.40 | 1000 PCS | |
| 14 2.5 | ★ | 12.0 | 2.20 | 3.40 | 1000 PCS | |
| 14 2.5 | ★ | 18.0 | 2.20 | 3.40 | 1000 PCS | |
| 12 4.0 | 8.0 | 2.80 | 4.0 | 1000 PCS | ||
| 12 4.0 | ★ | 9.0 | 2.80 | 4.0 | 1000 PCS | |
| 12 4.0 | ★ | 10.0 | 2.80 | 4.0 | 1000 PCS | |
| 12 4.0 | ★ | 12.0 | 2.80 | 4.0 | 1000 PCS | |
| 12 4.0 | ★ | 15.0 | 2.80 | 4.0 | 1000 PCS | |
| 12 4.0 | ★ | 18.0 | 2.80 | 4.0 | 1000 PCS | |
| 10 6.0 | ★ | 10.0 | 3.50 | 4.70 | 1000 PCS | |
| 10 6.0 | ★ | 12.0 | 3.50 | 4.70 | 1000 PCS | |
| 10 6.0 | ★ | 15.0 | 3.50 | 4.70 | 1000 PCS | |
| 10 6.0 | ★ | 18.0 | 3.50 | 4.70 | 1000 PCS | |
| 8 10 | ★ | 12.0 | 4.50 | 5.80 | 1000 PCS | |
| 8 10 | ★ | 15.0 | 4.50 | 5.80 | 1000 PCS | |
| 8 10 | ★ | 18.0 | 4.50 | 5.80 | 1000 PCS | |
| 6 16 | ★ | 12.0 | 5.80 | 7.50 | 1000 PCS | |
| 6 16 | ★ | 15.0 | 5.80 | 7.50 | 1000 PCS | |
| 6 16 | ★ | 18.0 | 5.80 | 7.50 | 1000 PCS | |
| 6 16 | ★ | 25.0 | 5.80 | 7.50 | 1000 PCS | |
| 6 16 | ★ | 32.0 | 5.80 | 7.50 | 1000 PCS | |
| 4 25 | 12.0 | 7.30 | 9.50 | 1000 PCS | ||
| 4 25 | ★ | 15.0 | 7.30 | 9.50 | 1000 PCS | |
| 4 25 | ★ | 16.0 | 7.30 | 9.50 | 1000 PCS | |
| 4 25 | ★ | 18.0 | 7.30 | 9.50 | 1000 PCS | |
| 4 25 | ★ | 20.0 | 7.30 | 9.50 | 1000 PCS | |
| 4 25 | ★ | 22.0 | 7.30 | 9.50 | 1000 PCS | |
| 4 25 | ★ | 25.0 | 7.30 | 9.50 | 1000 PCS | |
| 4 25 | ★ | 32.0 | 7.30 | 9.50 | 1000 PCS | |
| 2 35 | 15.0 | 8.30 | 11.0 | 1000 PCS | ||
| 2 35 | 16.0 | 8.30 | 11.0 | 1000 PCS | ||
| 2 35 | ★ | 18.0 | 8.30 | 11.0 | 1000 PCS | |
| 2 35 | ★ | 20.0 | 8.30 | 11.0 | 1000 PCS | |
| 2 35 | ★ | 25.0 | 8.30 | 11.0 | 1000 PCS | |
| 2 35 | ★ | 32.0 | 8.30 | 11.0 | 1000 PCS | |
| 1/0 50 | ★ | 18.0 | 10.30 | 13.0 | 1000 PCS | |
| 1/0 50 | ★ | 20.0 | 10.30 | 13.0 | 1000 PCS | |
| 1/0 50 | ★ | 22.0 | 10.30 | 13.0 | 1000 PCS | |
| 1/0 50 | ★ | 25.0 | 10.30 | 13.0 | 1000 PCS | |
| 1/0 50 | ★ | 32.0 | 10.30 | 13.0 | 1000 PCS | |
| 2/0 70 | ★ | 22.0 | 13.50 | 15.80 | 500 PCS | |
| 2/0 70 | ★ | 25.0 | 13.50 | 15.80 | 500 PCS | |
| 2/0 70 | ★ | 32.0 | 13.50 | 15.80 | 500 PCS | |
| 3/0 95 | ★ | 25.0 | 14.70 | 17.30 | 500 PCS | |
| 3/0 95 | 30.0 | 14.70 | 17.30 | 500 PCS | ||
| 3/0 95 | ★ | 32.0 | 14.70 | 17.30 | 500 PCS | |
| 250 KCMIL 120 | ★ | 30.0 | 16.70 | 20.20 | 500 PCS | |
| 250 KCMIL 120 | ★ | 32.0 | 16.70 | 20.20 | 500 PCS | |
| 250 KCMIL 120 | ★ | 34.0 | 16.70 | 20.20 | 500 PCS | |
| 250 KCMIL 120 | 40.0 | 16.70 | 20.20 | 500 PCS | ||
| 250/300 KCMIL 150 | ★ | 32.0 | 19.50 | 23.0 | 500 PCS | |
| 250/300 KCMIL 150 | ★ | 38.0 | 19.50 | 23.0 | 500 PCS | |
| 250/300 KCMIL 150 | 40.0 | 19.50 | 23.0 | 100 PCS | ||
| 300 KCMIL 185 | ★ | 32.0 | 20.20 | 23.90 | 100 PCS | |
| 300 KCMIL 185 | ★ | 40.0 | 20.20 | 23.90 | 100 PCS |
