Name: TERMINALES DE ANILLO DE ALTA TEMPERATURA
Brand: Jeesoon Terminals Co., LTD.
SKU: null

Terminales de anillo de alta temperatura

1. MATERIAL DEL TERMINAL: ACERO
2. RECUBRIMIENTO: NIQUELADO
3. TEMPERATURA MÁXIMA: 482 ℃

| Siguiente producto

Seleccionar todo

Reiniciar

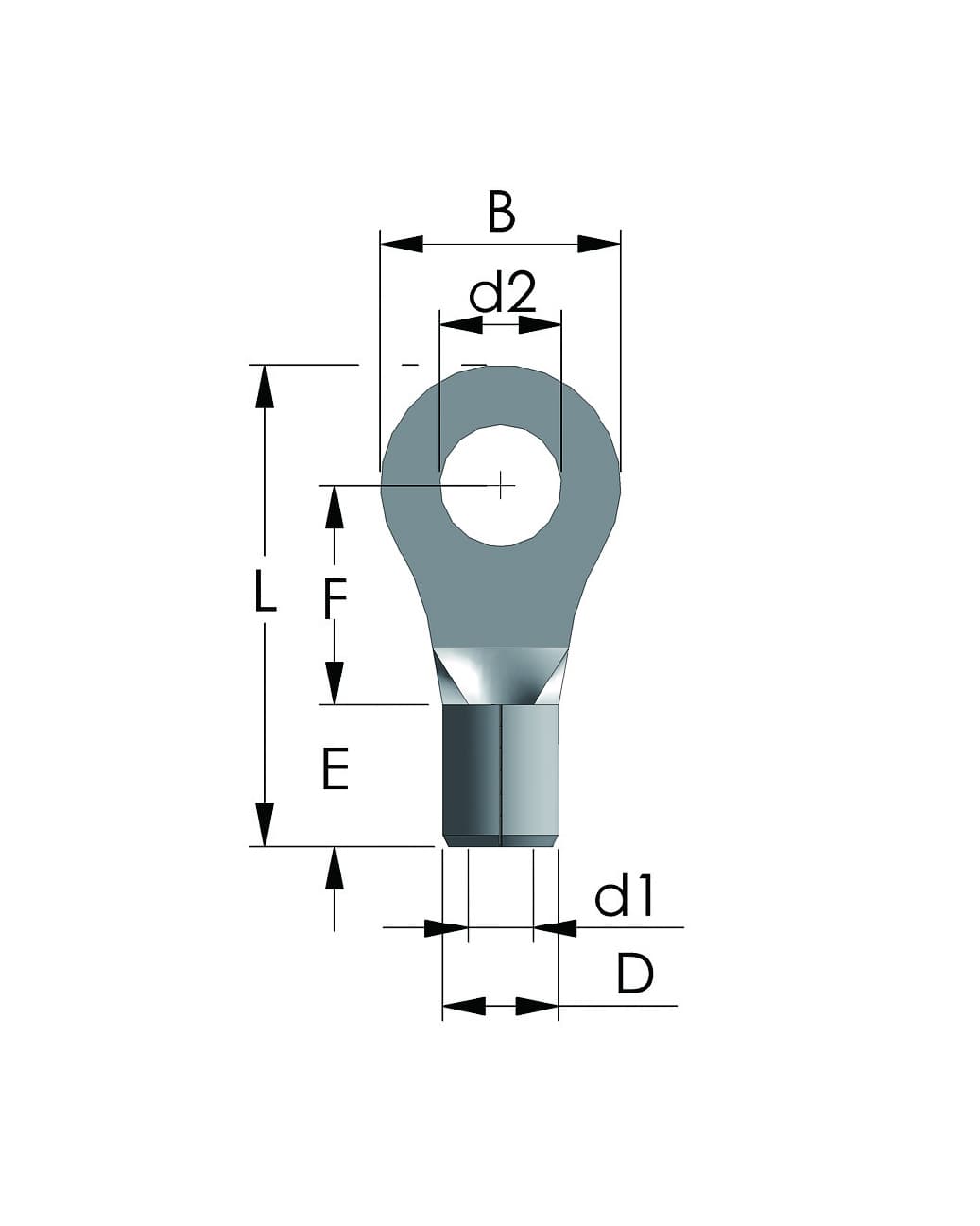

RANGO DE CABLES AWG / mm²	NÚMERO DE ARTÍCULO	TAMAÑO DEL PERNO d2	B (mm)	L (mm)	F (mm)	E (mm)	D (mm)	d1 (mm)	t (mm)
22~16 0.5~1.5	RG1-3.5SN2	#6 (3.7)	5.50	11.70	4.0	5.0	3.40	1.60	0.80
22~16 0.5~1.5	RG1-3.5MN2	#6 (3.7)	6.60	14.60	6.30	5.0	3.40	1.60	0.80
22~16 0.5~1.5	RG1-4SN2	#8 (4.3)	6.60	14.60	6.30	5.0	3.40	1.60	0.80
22~16 0.5~1.5	RG1-5N2	#10 (5.3)	8.0	16.0	7.0	5.0	3.40	1.60	0.80
22~16 0.5~1.5	RG1-6N2	1/4 (6.5)	11.60	21.80	11.10	5.0	3.40	1.60	0.80
22~16 0.5~1.5	RG1-8N2	5/16 (8.4)	11.60	21.80	11.10	5.0	3.40	1.60	0.80
22~16 0.5~1.5	RG1-10N2	3/8 (10.5)	13.60	25.70	13.90	5.0	3.40	1.60	0.80
16~14 1.5~2.5	RG2-3.5MN2	#6 (3.7)	6.60	14.50	6.30	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-3.5LN2	#6 (3.7)	8.50	17.0	7.80	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-4XLN2	#8 (4.3)	9.50	17.0	7.30	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-5SN2	#10 (5.3)	8.50	17.0	7.80	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-5LN2	#10 (5.3)	9.50	17.0	7.30	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-6N2	1/4 (6.5)	12.0	22.0	11.0	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-8N2	5/16 (8.4)	12.0	22.0	11.0	5.0	4.10	2.30	0.80
16~14 1.5~2.5	RG2-10N2	3/8 (10.5)	13.60	25.70	13.90	5.0	4.10	2.30	0.80
12~10 4~6	RG5-3.5LN2	#6 (3.7)	9.50	19.0	8.30	6.0	5.60	3.40	1.0
12~10 4~6	RG5-4LN2	#8 (4.3)	9.50	19.0	8.30	6.0	5.60	3.40	1.0
12~10 4~6	RG5-5N2	#10 (5.3)	9.50	19.0	8.30	6.0	5.60	3.40	1.0
12~10 4~6	RG5-6N2	1/4 (6.5)	12.0	22.50	10.50	6.0	5.60	3.40	1.0
12~10 4~6	RG5-8N2	5/16 (8.4)	15.0	27.20	13.70	6.0	5.60	3.40	1.0
12~10 4~6	RG5-10N2	3/8 (10.5)	15.0	27.20	13.70	6.0	5.60	3.40	1.0
8 8	RG8-6SN2	1/4 (6.5)	12.0	23.50	9.70	8.50	7.10	4.50	1.20
