- DOUBLE CRIMP NYLON FULLY INSULATED MALE DISCONNECTS (DOUBLE HUMP)
Double Crimp Nylon Fully Insulated Male Disconnects (Double Hump)
~~~EASY ENTRY SLEEVE~~~
1. MAXIMUM ELECTRICAL RATING : 300 VOLTS
2. MAXIMUM TEMPERATURE : 105 ℃
3. TERMINAL MATERIAL : BRASS
4. PLATING : ELECTRO TIN PLATED
5. REINFORCEMENT SLEEVE : C TYPE SLEEVE
6. INSULATION MATERIAL : EASY ENTRY NYLON
1. MAXIMUM ELECTRICAL RATING : 300 VOLTS
2. MAXIMUM TEMPERATURE : 105 ℃
3. TERMINAL MATERIAL : BRASS
4. PLATING : ELECTRO TIN PLATED
5. REINFORCEMENT SLEEVE : C TYPE SLEEVE
6. INSULATION MATERIAL : EASY ENTRY NYLON
Select All
Reset

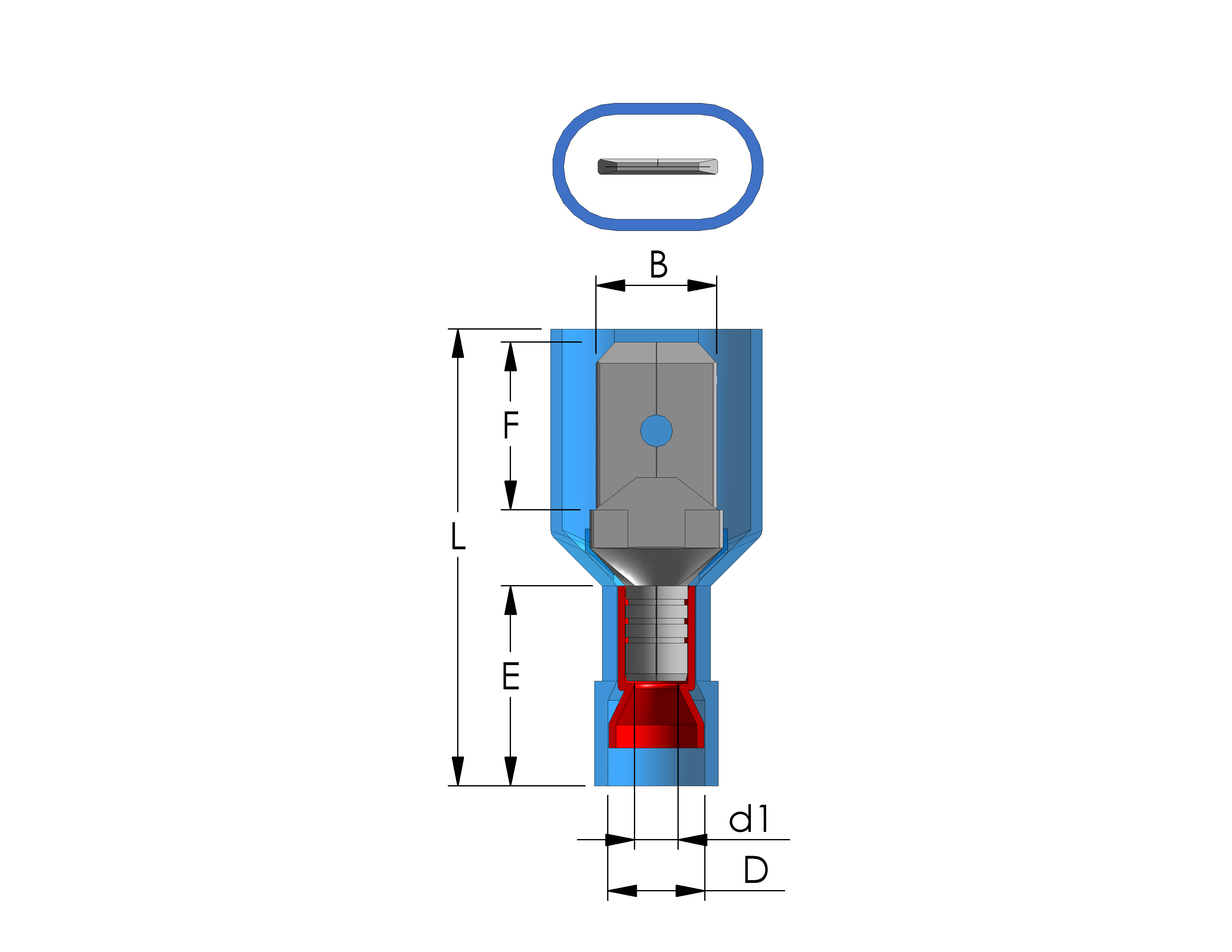

Add to Quote| WIRE RANGE AWG / mm² | ITEM NO. | UL | NEMA TAB | B (mm) | F (mm) | L (mm) | E (mm) | D (mm) | d1 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 22~16 0.5~1.5 | ★ | .032*.250 (0.8*6.4) | 6.35 | 7.90 | 24.0 | 10.50 | 4.20 | 1.70 | 0.40 | |
| 16~14 1.5~2.5 | ★ | .032*.250 (0.8*6.4) | 6.35 | 7.90 | 24.0 | 10.50 | 4.90 | 2.30 | 0.40 | |
| 12~10 4~6 | ★ | .032*.250 (0.8*6.4) | 6.35 | 7.90 | 26.50 | 12.50 | 6.50 | 3.40 | 0.40 |
