Nylon Spade Terminals
1. MAXIMUM ELECTRICAL RATING : 600 VOLTS
2. MAXIMUM TEMPERATURE : 105℃
3. TERMINAL MATERIAL : COPPER
4. PLATING : ELECTRO TIN PLATED
5. INSULATION MATERIAL : EASY ENTRY NYLON
2. MAXIMUM TEMPERATURE : 105℃
3. TERMINAL MATERIAL : COPPER
4. PLATING : ELECTRO TIN PLATED
5. INSULATION MATERIAL : EASY ENTRY NYLON
Select All
Reset

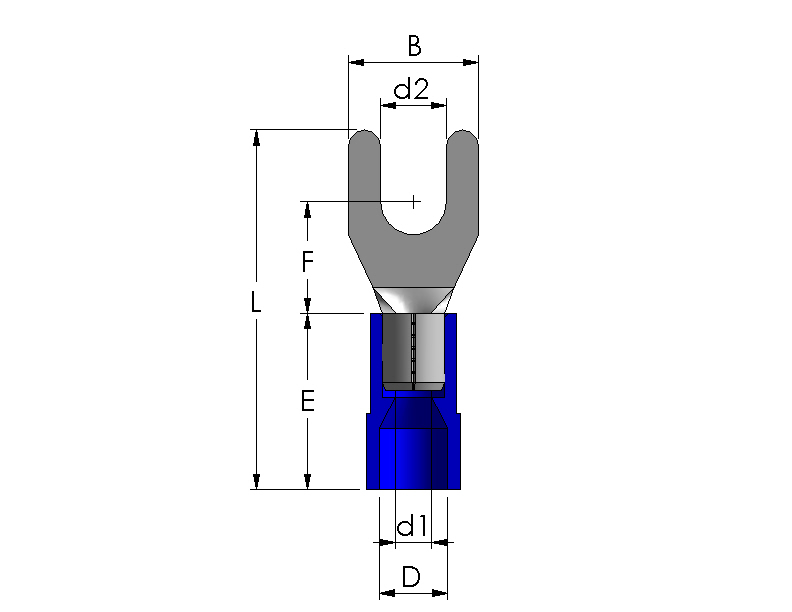

Add to Quote| WIRE RANGE AWG / mm² | ITEM NO. | UL | STUD SIZE d2 | B (mm) | L (mm) | F (mm) | E (mm) | D (mm) | d1 (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 22~16 0.5~1.5 | ★ | #4 (3.2) | 5.0 | 22.0 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #4 (3.2) | 5.80 | 22.0 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 5.80 | 22.0 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 6.40 | 21.60 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #6 (3.7) | 7.20 | 22.0 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 6.40 | 21.60 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 7.20 | 22.0 | 6.30 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #8 (4.3) | 8.0 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #10 (5.3) | 8.0 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | #10 (5.3) | 9.50 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 1/4 (6.5) | 9.50 | 22.0 | 7.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 1/4 (6.5) | 12.0 | 28.20 | 11.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 22~16 0.5~1.5 | ★ | 5/16 (8.4) | 12.0 | 28.20 | 11.0 | 11.0 | 4.10 | 1.70 | 0.75 | |
| 16~14 1.5~2.5 | ★ | #4 (3.2) | 5.0 | 22.0 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #4 (3.2) | 5.80 | 22.0 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 5.80 | 22.0 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 6.40 | 22.0 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #6 (3.7) | 7.20 | 22.20 | 6.50 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 6.40 | 22.0 | 6.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 7.20 | 22.20 | 6.50 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #8 (4.3) | 8.50 | 23.0 | 7.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 8.50 | 23.0 | 7.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | #10 (5.3) | 9.50 | 23.0 | 7.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 1/4 (6.5) | 9.50 | 23.0 | 7.30 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 1/4 (6.5) | 12.0 | 28.20 | 11.0 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 16~14 1.5~2.5 | ★ | 5/16 (8.4) | 12.0 | 28.20 | 11.0 | 11.0 | 4.50 | 2.30 | 0.80 | |
| 12~10 4~6 | ★ | #6 (3.7) | 7.20 | 25.70 | 7.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #6 (3.7) | 8.50 | 25.70 | 7.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #8 (4.3) | 8.50 | 25.70 | 7.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #8 (4.3) | 9.50 | 25.70 | 7.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | #10 (5.3) | 9.50 | 25.70 | 7.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 1/4 (6.5) | 9.50 | 25.70 | 7.50 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 1/4 (6.5) | 12.0 | 31.70 | 12.0 | 13.0 | 6.50 | 3.40 | 1.0 | |
| 12~10 4~6 | ★ | 5/16 (8.4) | 13.50 | 30.50 | 10.50 | 13.0 | 6.50 | 3.40 | 1.0 |
